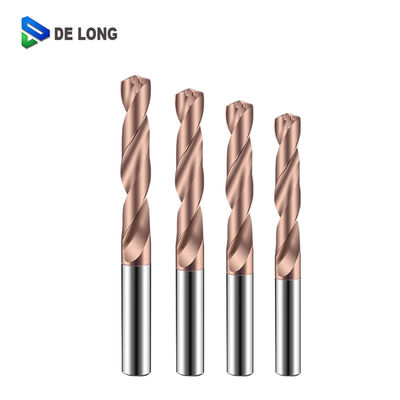

Ultra Hard Internal Cooling Tungsten Carbide Drill Bit 60 Deg Center Outlet D10 Shank

All Category

CNC Cutters And Holders

Mr. Aaron kui Ju

150291456@qq.com

+86 13973324624

Contact Now

Ultra Hard Internal Cooling Tungsten Carbide Drill Bit 60 Deg Center Outlet D10 Shank

Detail Information

Product Description

Detail Information

Features:

High Hardness, Wear Resistance, Heat Resistance

Type:

Drill

Application:

Metal Drilling

Coating:

Titanium, Tin, Or Cobalt

Suitable For:

High-speed Drilling

Flute Type:

Spiral

Cutting Direction:

Right Hand

Usage:

Handheld Or Machine

Shank Type:

Straight

Material:

Carbide

Size:

Various Sizes Available

Manufacturer:

Various Brands Available

Highlight:

D10 Tungsten Carbide Drill Bit

60 deg Center Outlet Drill Bit

Internal Cooling Tungsten Drill Bit

Product Description

**5D(8.1-10.0) * D10 * 61 * 103L Ultra Hard Internal Cooling Tungsten Steel Drill Bit 60 ° Center Outlet Tungsten Steel Fried Dough Twists Drill**

Product description

carbide drills are a popular choice for high-speed drilling applications where high precision, accuracy, and durability are required. When using carbide drills, it is important to maintain proper cutting conditions, such as feed rate, cutting speed, and coolant flow, to ensure optimal performance and tool life. Additionally, carbide drills require more rigid and stable setups than standard drills due to their higher cutting forces and rigidity requirements.

The 5D Ultra-Hard Internal Cooling Tungsten Carbide Drill Bit (Size Range: 8.1–10.0mm, D10 Shank, 61mm flute length, 103mm overall length) is specially engineered for high-performance, high-efficiency deep-hole drilling in tough materials. Featuring a 60° center outlet and unique "fried dough twists" spiral flute geometry, this drill ensures fast chip evacuation, excellent centering, and minimal tool wear even in demanding conditions.

Crafted from ultra-fine grain tungsten carbide and enhanced with internal coolant channels, this drill delivers superior hardness, thermal resistance, and prolonged cutting life — ideal for automated CNC machining centers and precision metal drilling applications.

Key Features

Ultra-Hard Tungsten Carbide: Offers exceptional hardness and wear resistance for long tool life.
Internal Coolant Design: Dual internal channels for efficient cooling, reducing heat buildup and tool wear.
Fried Dough Twists Helix Flute: Innovative twisted flute design enhances chip evacuation and minimizes clogging.
60° Center Outlet Tip: Promotes accurate centering and reduced deflection in deep-hole drilling.
5D Depth Ratio: Capable of drilling to 5 times the diameter, ideal for deeper hole applications.
Precision Ground Shank (D10): Ensures optimal alignment and vibration reduction during high-speed operation.

Parameter	Value
Drill Diameter	8.1–10.0 mm
Shank Diameter	D10
Flute Length	61 mm
Overall Length	103 mm
Drilling Depth	5D (5× diameter)
Tip Geometry	60° Center Outlet
Flute Type	Twisted Helix (“Fried Dough Twists” Style)
Material	Ultra-Hard Tungsten Carbide
Coolant	Internal Cooling Channels
Application	Deep hole drilling in hard and stainless steels, cast iron, alloys

Applications

Automotive Industry: Precision drilling of hardened steel components and engine blocks.
Mold & Die Manufacturing: High-accuracy hole making in alloyed tool steels.
Aerospace Components: Drilling structural parts with strict tolerance requirements.
CNC Machining Centers: Continuous, automated high-speed drilling with reliable tool life.
General Engineering: Deep-hole drilling in stainless steel, carbon steel, and composite alloys.
