High-Precision 55 Degree Helix Angle Single-Tooth Thread Endmill with Mirror-Polished Cutting Edge for Aluminum Processing

Brand Name:	DELONG TOOL
Model Number:	Solid Carbide Single-Teeth Thread Endmill
MOQ:	1pcs/package
Price:	2~40USD/PCS
Packaging Details:	Plastic box and cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE、ISO9001

Helix Angle:

55 Degree

Overall Length:

1-6 Inches

Material:

Carbide

Surface:

Blank Or Printed

Suitable For:

Aluminum/Steel/Stainless Steel/Titanium/Plastic

Flute Type:

Regular/Variable

Package Quantity:

1-10 Pieces

Application:

Milling

Supply Ability:

100000000PCS/Year

Highlight:

55 Degree Helix Angle Thread Endmill

Single-Tooth Design Carbide End Mill

Mirror-Polished Cutting Edge Thread Mill

Product Description

Product Overview

Single-Tooth Solid Carbide Thread End Mills for Aluminum is a premium tool designed specifically for high-precision internal thread milling in aluminum and non-ferrous alloys. It perfectly blends the mechanical advantages of a single-tooth profile with a razor-sharp, mirror-polished cutting edge. By keeping cutting forces to an absolute physical minimum and providing an ultra-smooth surface, it completely eliminates aluminum welding and Built-Up Edge (BUE), making it the definitive choice for thin-walled, micro-diameter, and deep-hole aluminum applications.

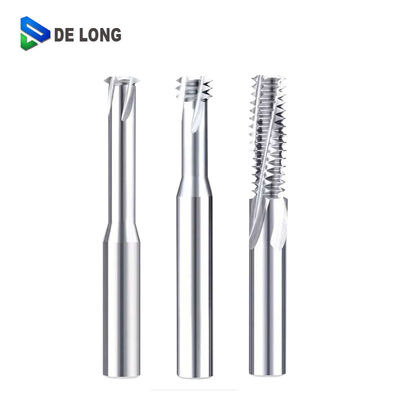

High-Precision 55 Degree Helix Angle Single-Tooth Thread Endmill with Mirror-Polished Cutting Edge for Aluminum Processing 0

Key Advantages & Technical Features

Minimal Resistance & Anti-Sticking: The single-tooth design provides the lowest possible cutting force, which is ideal for machining thin-walled aluminum components prone to deformation. The uncoated (or polished DLC) mirror finish prevents sticky aluminum chips from welding to the flute.

Ultimate Tool Breakage Prevention: Compared to traditional taps or multi-tooth mills that risk jamming due to chip packing, this single-tooth configuration carries a near-zero risk of catastrophic breakage, ensuring maximum safety for high-value workpieces (e.g., aerospace parts or premium 3C electronics enclosures).

Flawless High-Gloss Surface Finish: Single-point contact completely eliminates multi-tooth harmonics and tool chatter. Paired with a sharp rake angle optimized for non-ferrous materials, it delivers immaculate, burr-free, and mirror-like thread profiles.

Maximum Machining Flexibility: Highly cost-effective and versatile—as long as the pitch is identical, one single-tooth thread mill can programmatically machine any larger thread diameter. It can also cut seamlessly all the way to the absolute bottom of a blind hole.

Applications

Ideally engineered for precision threading in aluminum alloys (e.g., 6061, 7075), pure aluminum, die-cast aluminum, copper, brass, bronze, magnesium alloys, and other non-ferrous metals.
