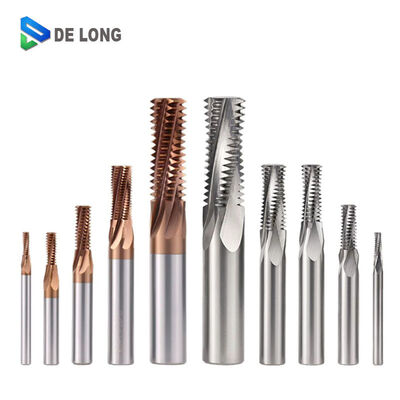

Product Overview

This product is a High-Precision Solid Carbide Thread Milling Cutter (also known as a Tungsten Carbide Thread Mill). It is a highly efficient and precise rotary tool designed to produce internal threads on CNC machining centers via 3-axis helical interpolation. Compared to traditional tapping, thread milling offers superior processing flexibility and safety. It delivers exceptional thread surface finish and dimensional accuracy, completely eliminating the catastrophic risk of a tap breaking and jamming inside a costly workpiece, especially when machining hardened or exotic materials.

Key Features

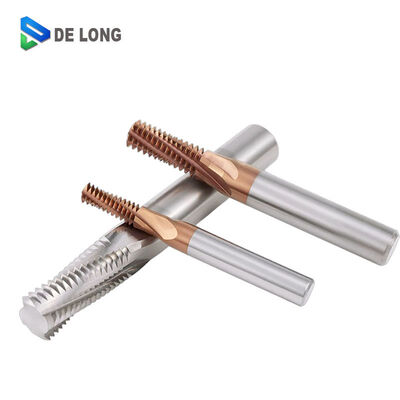

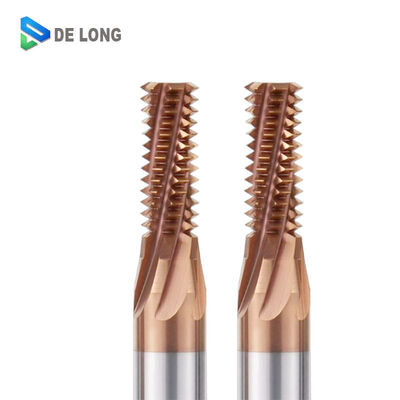

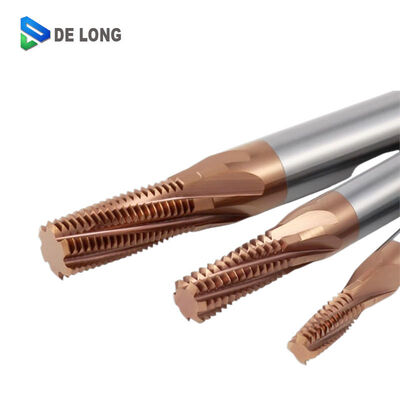

Multi-Tooth Spiral Flute Design: Featuring a multi-row tooth profile combined with engineered spiral flutes, this tool balances cutting forces and dramatically minimizes vibration. The multi-tooth setup allows the cutter to machine a full-depth thread profile in a single or minimal number of helical passes, maximizing production efficiency.

Premium Solid Carbide Substrate: Crafted from high-density, ultra-fine micro-grain tungsten carbide, providing remarkable red-hardness and high bending strength. This ensures maximum tool rigidity during high-speed rotation, yielding precise thread forms without tapering or deflection.

Advanced Bronze Nano-Coating: Coated with a state-of-the-art, heat-resistant nano-composite layer (such as AlTiN). This high-performance coating delivers excellent thermal protection and a low friction coefficient, protecting the cutting edges against accelerated wear and enabling successful high-speed dry milling.

Exceptional Versatility & Risk Mitigation: A single thread mill can process internal threads of different diameters as long as they share the same pitch (suitable for both blind/thru holes and left/right-hand threads). Crucially, if the tool undergoes excessive stress and breaks, its diameter remains smaller than the pre-drilled hole, allowing for effortless removal without scrapping the workpiece.

Applications & Material Compatibility

Applicable Equipment: Exclusively for use on precision CNC machining centers, CNC milling machines, and modern milling systems capable of 3-axis helical interpolation.

Primary Operations: High-precision internal thread milling.

Target Materials: Carbon steel, alloy steel, die steel, stainless steel, hardened steel, cast iron, as well as difficult-to-machine materials like aluminum alloys, titanium alloys, and high-temperature super alloys.
