High-Precision Solid Carbide Spotting Drill with 55 Degree Helix Angle and Dual-Flute Design for Accurate Center Drilling and Chamfering

Brand Name:	DELONG TOOL
Model Number:	Solid Carbide Spotting Drill Center Drill
MOQ:	1pcs/package
Price:	2~40USD/PCS
Packaging Details:	Plastic box and cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE、ISO9001

Helix Angle:

55 Degree

Overall Length:

1-6 Inches

Material:

Carbide

Surface:

Blank Or Printed

Suitable For:

Aluminum/Steel/Stainless Steel/Titanium/Plastic

Flute Type:

Regular/Variable

Package Quantity:

1-10 Pieces

Application:

Milling

Supply Ability:

100000000PCS/Year

Highlight:

55 Degree Helix Angle Spotting Drill

High-Precision Solid Carbide Center Drill

Dual-Flute Design Chamfer Cutter

Product Description

Product Overview

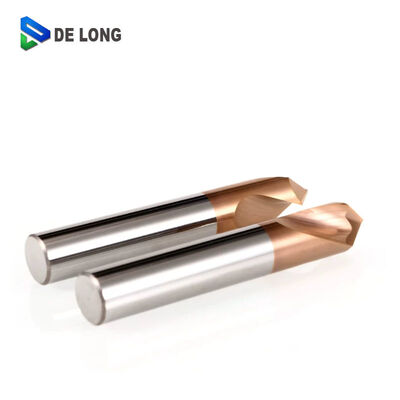

This product is a High-Precision Solid Carbide Spotting Drill (also referred to as a Center Drill or Chamfer Cutter). Engineered for modern CNC machining and precision machine tools, its primary function is to create an accurate starter indentation or "dimple" prior to drilling. This prevents subsequent twist drills from walking or veering off-center, ensuring strict hole alignment while also doubling as an efficient tool for hole chamfering.

High-Precision Solid Carbide Spotting Drill with 55 Degree Helix Angle and Dual-Flute Design for Accurate Center Drilling and Chamfering 0

Key Features

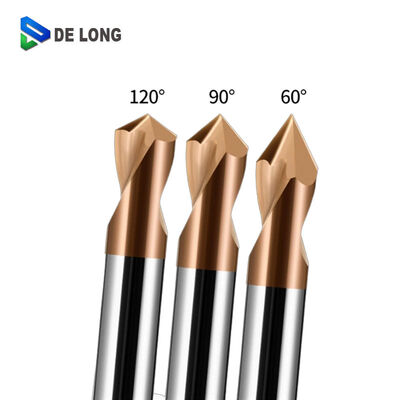

Three Precision Point Angles for Versatile Machining:

120° Point Angle: Ideal for spotting prior to using standard drills with a 118° to 135° point angle. It ensures that the outer cutting lips of the subsequent drill engage the workpiece before the chisel edge, minimizing drill deflection and wear.

90° Point Angle: The most versatile option. It delivers a dual-purpose solution by providing both precise center positioning and creating a perfect chamfer for standard 90° countersunk screws.

60° Point Angle: Suited for applications requiring a sharper, deeper center indentation, specific imperial chamfers, or precise center holes on lathe workpieces.

Premium Carbide Substrate & Advanced Coating: Manufactured from high-grade solid tungsten carbide, the cutting head is enhanced with an advanced bronze-colored nano-coating (such as AlTiN). This coating offers exceptional red-hardness and a low friction coefficient, allowing the tool to withstand intense heat during high-speed cutting while drastically extending tool life.

Optimized Dual-Flute Design: The precision-engineered spiral flutes facilitate smooth, rapid chip evacuation. This prevents chip packing and built-up edge (BUE), resulting in an outstandingly clean surface finish.

Applications & Material Compatibility

Applicable Equipment: CNC machining centers, CNC lathes, precision drilling machines, and milling machines.

Target Materials: Carbon steel, alloy steel, pre-hardened steel, die steel, stainless steel, cast iron, aluminum alloy, copper, and other non-ferrous metals.
