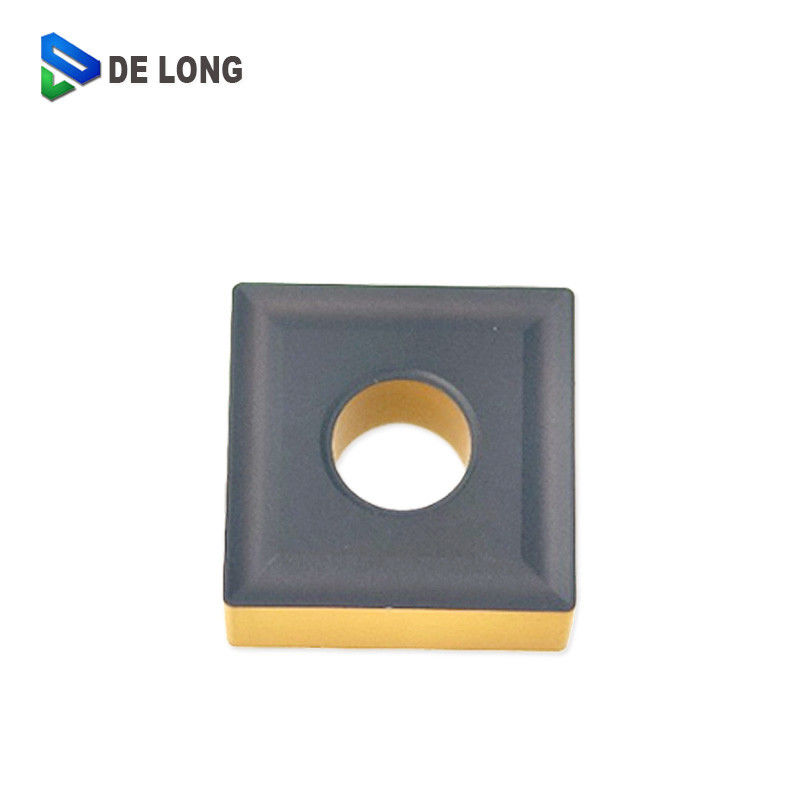

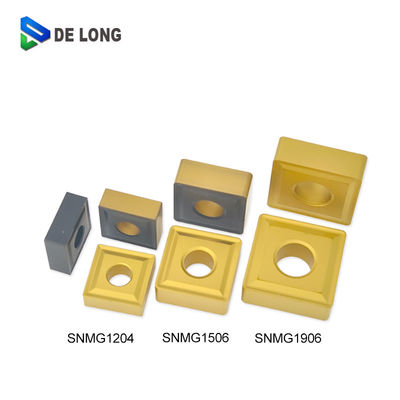

SNMG120404 TC Turning Tool Blade Cemented Carbide Impact Resistant and wear-resistant

Brand: "DELONG" or OEM
The blades produced by our company are made of high-strength hard alloy matrix, fine carbide particles, and advanced PVD/CVD coating. The PVD coating temperature is between 300-450, the CVD coating temperature is between 800-950, and the alloy substrate sintering temperature is between 1380-1460. The thick coating, high precision, wear-resistant blade, high rigidity, and high deformation resistance make the tool suitable for heavy-duty machining.C

Noted: please inform us detail application so that we supply you suitable grade

DLP101:  CVD coating color yellow,Suitable for processing soft steel below 28°, the yellow coating TIN thickness factor improves the resistance to collapse and impact.

DLP102:  CVD coating color black,suitable for processing steel parts within 45 °, modulated steel, and quenched steel

DLP103:  CVD coating dual color,suitable for semi precision and rough machining of steel parts.

The grades DLP101,DLP102,DLP103 are specialized parts for processing steel parts

DLT205:  PVD coating color bronze,mainly used for stainless steel processing and steel parts processing

DL15TF:  PVD coating color bronze,mainly used for stainless steel processing and steel parts processing

DL1008:  PVD coating color black gray,mainly used for stainless steel processing and steel parts processing

The grades DLT205,DL15TF,DL1008 is a universal type suitable for processing steel/stainless steel parts

DLT214:PVD coating color is rainbow color,Suitable for processing high hardness materials such as steel parts below 55 degrees Celsius, stainless steel parts, and titanium alloys

LM718:PVD coating color  nano blue red,Suitable for processing high hardness materials such as steel parts below 50 degrees Celsius, stainless steel parts, and titanium alloys

WC50:PVD coating color  black,Suitable for processing high hardness materials, such as steel parts above 55 degrees Celsius, stainless steel parts, and titanium alloys

The grades DLT214,LM718,WC50 Most suitable for processing high hardness and difficult to machine materials

Select the R angle according to the requirements

R:0.2  R: 0.4 angle :

suitable for small depth precision machining and processing of slender shaft parts

R: 0.8 angle :

suitable for precision machining or rough machining

R: 1.2 Angle :

suitable for rough machining, processing hard materials, and intermittent machining

Specifications:

●  Stock available  O  Make-to-order

Feature:

Delivery time: 8-20 days, depends on the stock and productions.

Payment: 100% before shipment

unit weight: 9.5-28.7g/pc

Terms: Except for special explanation, all quotation are based on FCA Zhuzhou, Hunan, China, excluding freight and insurance

Packing: plastic box(10pcs/package, white color), and cartons

OEM: According to the requirement, supply neutral packing, without label and marking.
