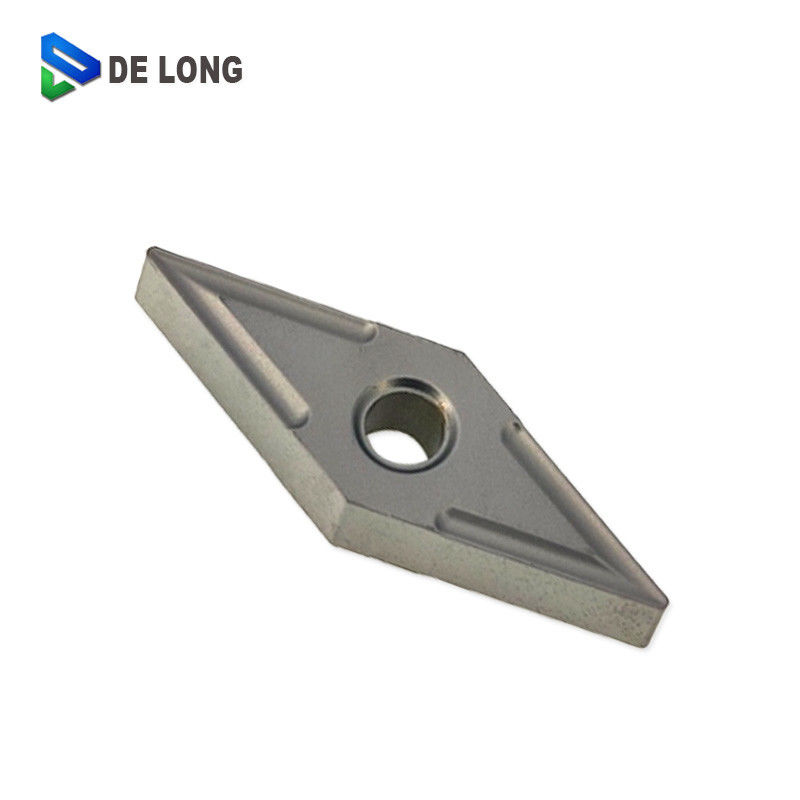

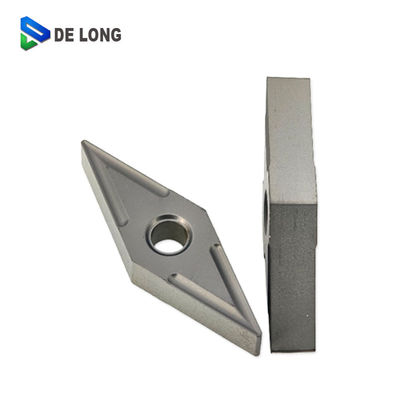

VNMG160404 SL Hard Alloy Blade Metal Ceramic Blade Insert For Steel Machining

Brand: "DELONG" or OEM
The blades produced by our company are made of high-strength hard alloy matrix, fine carbide particles, and advanced PVD/CVD coating. The PVD coating temperature is between 300-450, the CVD coating temperature is between 800-950, and the alloy substrate sintering temperature is between 1380-1460. The thick coating, high precision, wear-resistant blade, high rigidity, and high deformation resistance make the tool suitable for heavy-duty machining.C

Noted: please inform us detail application so that we supply you suitable grade

DLT205:  PVD coating color bronze,mainly used for stainless steel processing and steel parts processing

DL15TF:  PVD coating color bronze,mainly used for stainless steel processing and steel parts processing

DL1008:  PVD coating color black gray,mainly used for stainless steel processing and steel parts processing

The grades DLT205,DL15TF,DL1008 is a universal type suitable for processing steel/stainless steel parts

DLK102:  CVD coating color  cast iron black,Suitable for processing gray cast iron and ductile iron, as well as precision machining of hard steel

DLK105:  CVD coating  cast iron dual color,Suitable for processing gray cast iron and ductile iron, as well as precision machining of hard steel

The grades DLK102,DLK105 is a specialized component for processing cast iron

DLT214: PVD coating color is rainbow color,Suitable for processing high hardness materials such as steel parts below 55 degrees Celsius, stainless steel parts, and titanium alloys

LM718: PVD coating color  nano blue red,Suitable for processing high hardness materials such as steel parts below 50 degrees Celsius, stainless steel parts, and titanium alloys

WC50: PVD coating color  black,Suitable for processing high hardness materials, such as steel parts above 55 degrees Celsius, stainless steel parts, and titanium alloys

The grades DLT214,LM718,WC50 Most suitable for processing high hardness and difficult to machine materials

Cermet blade grade

TX920G :  gray color, suitable for ordinary steel parts

TX9201 :  TIN yellow color coating ,suitable for steel and stainless steel parts

ST550 :  Gray bright color ,suitable for processing steel parts, stainless steel parts, cast iron, with high standard quality

Specifications:

●  Stock available  O  Make-to-order

Feature:

Delivery time: 8-20 days, depends on the stock and productions.

Payment: 100% before shipment

unit weight: 9.5-28.7g/pc

Terms: Except for special explanation, all quotation are based on FCA Zhuzhou, Hunan, China, excluding freight and insurance

Packing: plastic box(10pcs/package, white color), and cartons

OEM: According to the requirement, supply neutral packing, without label and marking.
