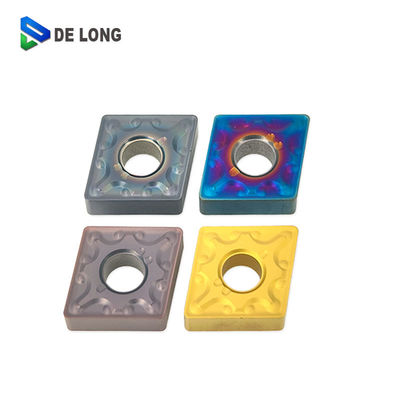

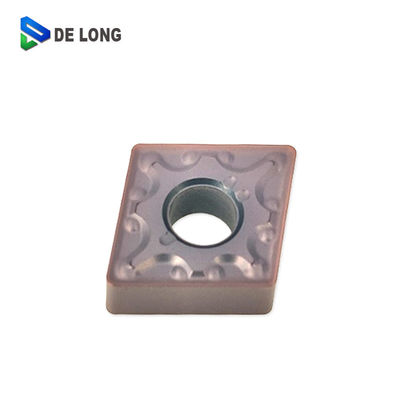

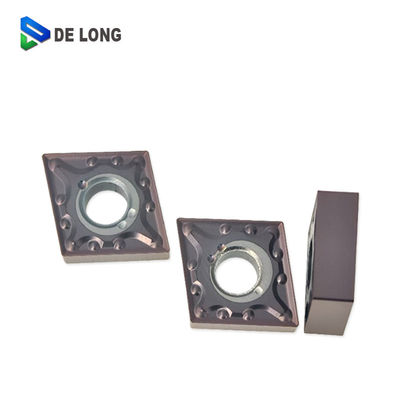

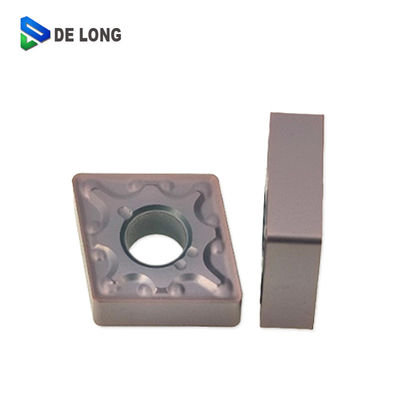

CNMG120404 MA  CNC Turning Tool Carbide Inserts for Stainless steel machining

Brand: "DELONG" or OEM
The blades produced by our company are made of high-strength hard alloy matrix, fine carbide particles, and advanced PVD/CVD coating. The PVD coating temperature is between 300-450, the CVD coating temperature is between 800-950, and the alloy substrate sintering temperature is between 1380-1460. The thick coating, high precision, wear-resistant blade, high rigidity, and high deformation resistance make the tool suitable for heavy-duty machining.C

Noted: please inform us detail application so that we supply you suitable grade

DLP101:  CVD coating color yellow

Suitable for processing soft steel below 28°, the yellow coating TIN thickness factor improves the resistance to collapse and impact.

DLP102:  CVD coating color black

suitable for processing steel parts within 45 °, modulated steel, and quenched steel

DL1458: PVD coating color is bright white
suitable for processing viscous materials such as titanium alloys, high-temperature alloys, stainless steel, etc.

DLT214: PVD coating color is rainbow color
Suitable for processing high hardness materials such as steel parts below 55 degrees Celsius, stainless steel parts, and titanium alloys

LM718: PVD coating color  nano blue red
Suitable for processing high hardness materials such as steel parts below 50 degrees Celsius, stainless steel parts, and titanium alloys

WC50: PVD coating color  black
Suitable for processing high hardness materials, such as steel parts above 55 degrees Celsius, stainless steel parts, and titanium alloys

The grades DL1458 Most Suitable for processing high-temperature titanium alloys
The grades DLT214,LM718,WC50 Most suitable for processing high hardness and difficult to machine materials

Chip Breakers and Applications:

TM:   Suitable for semi precision cutting and basic selection

MA:   Suitable for medium cutting and universal groove types

MS:   Suitable for medium cutting, stainless steel, soft steel, and difficult to cut materials

HQ,CQ:  Suitable for precision machining and semi precision machining

PM:   Suitable for semi precision machining

GS:   Suitable for semi precision machining~rough machining, stainless steel

HA:   Suitable for processing light alloy stainless steel

Specifications:

●  Stock available  O  Make-to-order

Feature:

Delivery time: 8-20 days, depends on the stock and productions.

Payment: 100% before shipment

unit weight: 9.5-28.7g/pc

Terms: Except for special explanation, all quotation are based on FCA Zhuzhou, Hunan, China, excluding freight and insurance

Packing: plastic box(10pcs/package, white color), and cartons

OEM: According to the requirement, supply neutral packing, without label and marking.
